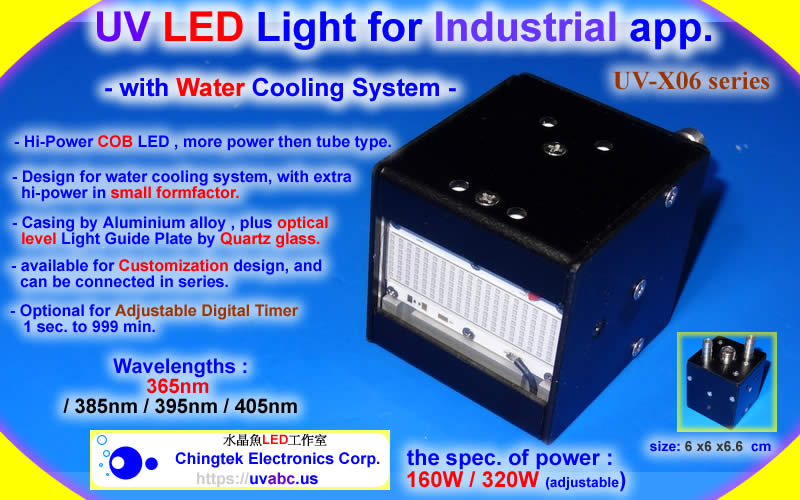

with160W / 320W COB packing High Power UV-LED ultraviolet made by listed company in Taiwan, Quality guarantee.




plus0.2cm optical level Light Guide Plate by quartz glass.Casing by Aluminium alloy ,more durable by good thermal dissipation.




Dimensions / Weight :
            UV-BOX   (main body) 6 X 6 x 6.6 cm / 0.52 Kg
            160W   Power Module - 228 X 68 x 69 mm / 1.6 Kg
            320W   Power Module - 252 X 90 x 44 mm / 2.3 Kg

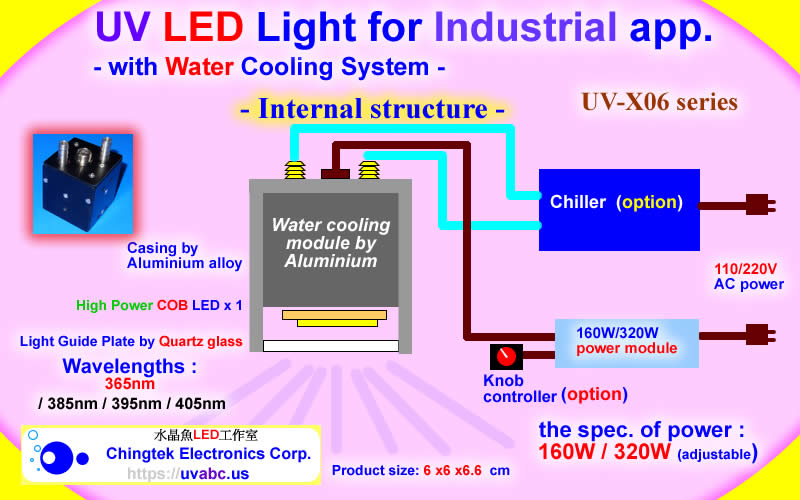

The specification request of Chiller (not included ) :
            4.1)   Cooling Capacity: 400W up
            4.2)   Temperature Control: 15°C - 40°C ( setting below 30°C )
            4.3)   Process Flow: 7 L / min.
            4.4)   Water pipe diameter: 1/4PT





Optional for Adjustable Digital Timer - 1 sec. to 999 min. ( to purchase extra control box )




Optional for Adjustable output power - 10% to 100%. ( to purchase extra control box )




Low temp. / Low power / Energy savings, ( available for 110 / 220 V )with MeanWell c.c. mode adapter




For Industrial Diagnostic & Inspection / SLA/DLP 3D printing / Flatbed Printer / Fluorescence check / UV adhesive curing / LOCA ( Liquid optical clear adhesive) curing




The Detector / Checker for Conformal Coating of PCBA / COUNTERFEIT FAKE Money Bank Note / ID card / Passport / Security (finance).

  UV Irradiance for reference :

UVA 365nm ( UV Irradiance : 2.0 W /cm2 - 160W per COB chip )

UVA 365nm ( UV Irradiance : 4.0 W /cm2 - 160W per COB chip )

UVA 395nm ( UV Irradiance : 5.5 W /cm2 - 320W per COB chip )

UVA 395nm ( UV Irradiance : 8.0 W /cm2 - 320W per COB chip )

p.s.measured by DYMAX ACCU-CAL 50-LED Meter, and the distance of test is 10 mm .

         Technology

The COB (Chip On Board) Multi-chips LED package benefit from innovations in device technology, chip package and thermalmanagement. This suite of technologies give engineers and system designers the freedom to develop solutions both high in power and efficiency.

         Specification

   Available for Customization for different length (365 / 385 / 395 / 405nm) or Watt (power)

Model No.: UV-X06-160-365G2-CS
UV-X06 series - 160W Economic type
	1.UV light(160W 365nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 2.0 W /cm2 3.One year guarantee
	-

Model No.: UV-X06-160-365G2-CX
UV-X06 series - 160W Adjustable type
	1.UV light(160W 365nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 2.0 W /cm2 (Adjustable 10% to 100%) 3.One year guarantee
	-

Model No.: UV-X06-320-365G2-CS
UV-X06 series - 320W Economic type
	1.UV light(320W 365nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 4.0 W /cm2 3.One year guarantee
	-

Model No.: UV-X06-320-365G2-CX
UV-X06 series - 320W Adjustable type
	1.UV light(320W 365nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 4.0 W /cm2 (Adjustable 10% to 100%) 3.One year guarantee
	-

Model No.: UV-X06-160-395G2-CS
UV-X06 series - 160W Economic type
	1.UV light(160W 395nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 5.5 W /cm2 3.One year guarantee
	-

Model No.: UV-X06-160-395G2-CX
UV-X06 series - 160W Adjustable type
	1.UV light(160W 395nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 5.5 W /cm2 (Adjustable 10% to 100%) 3.One year guarantee
	-

Model No.: UV-X06-320-395G2-CS
UV-X06 series - 320W Economic type
	1.UV light(320W 395nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 8.0 W /cm2 3.One year guarantee
	-

Model No.: UV-X06-320-395G2-CX
UV-X06 series - 320W Adjustable type
	1.UV light(320W 395nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 8.0 W /cm2 (Adjustable 10% to 100%) 3.One year guarantee
	-

      Optional items

Model No.: CK-UV400
Anti-UV Safety goggles
	Anti-UV 400nm Safety goggles ( for UV 280nm - 400nm only )
	-

Model No.: CK-HD001
U type Handle
	the U type Handle for UV-BOX
	not available

Model No.: CK-ST007
Adjustable Holder for UV-BOX
	(the adjustable range : left / right 0 ~ 32 cm /height for 0 ~ 38 cm,easy for examination) ( User's Manual ) p.s. Available For customized Holder.
	-

Model No.: CK-TC005
Adjustable Digital Timer
	1 sec. to 999 min./ size:12.5X8.5x4.5cm ( User's Manual ) p.s. Optional for extra Pedal switch / Toggle switch
	-

Model No.: CK-TC005-PS
Pedal switch
	( size：8.3 X 8 x 3 cm ) ( with control wire : 150 cm )
	-

Model No.: CK-TC005-HS
Toggle switch
	( size：8.3 X 2 x 2 cm ) ( with control wire : 150 cm )
	-
