Technical Parameter
The specified load: AC 110V/220V 10A
Relay Life: about 100,000 times
Working Temperature: -40 to 85 °C.
Product size: 12.5 x 8.5 x 5.5 cm
Weight (body): 320g
Optional accessories
CK-TC005-PS Pedal switch ( size:8.3 X 8 x 3 cm )
( with control wire : 150 cm)
CK-TC005-HS Toggle switch ( size:8.3 X 2 x 2 cm )
( with control wire : 150 cm)
p.s. this 2 items both can be connected the extension socket ( TRIG. ext. ) for Triggering function.

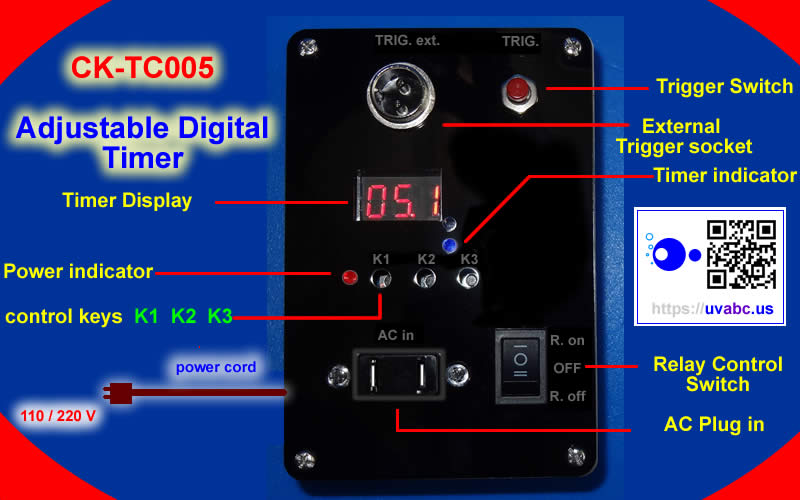

Control Panel
Working mode selection
P1-1 operating modes
A signal to trigger relay, time is up, the relay disconnect users, You can set relay time T, click K2 the hundred digital tube starts flashing,then press K3, the hundred digital change;click K2 ten digital tube starts flashing, then press K3,ten digit changes; click K2 bit digital tube starts flashing, then press K3, single-digit change; then
click K2,; digital pipe does not blink,then press the K3, shifting the decimal point,the decimal point in a bit indicates 0-999 minutes in ten represents 0 to 99.9 seconds without a decimal point represents 0-999 seconds; good choice, bringing the time setting is completed. Short press K1,enter function offline-tuning settings,trigger the default delay period is invalid, press K1, during the delay trigger active(re-timing),click on the K1, during the delay reset (timer turned off, the relay reset) press
again to repeat the default settings for the first time.
P1-2 operating modes
A signal trigger ,digital countdown begins, X seconds after, there lay open Y seconds,then close. Users can set the relay time X,Y;P1-1 different time settings similar to the blue lights that set the relay time, blue light indicates setting relay off time. Short press K1, enter function offline-tuning the set, the default trigger is invalid during
the delay,pressK1,during the delay trigger active(re-timing),then click the first repeat default settings.
P1-3 operating modes
Open X seconds,disconnect Y seconds, infinite loop. Users can set the relay time X,Y; time setting similar to P1-2.Short press K1,enter function offline-tuning set, The default function is: set up an electric circuit the relay first open, press the K1,there lay first close. Press again to repeat the default functionality.
P1-4 operating modes
A signal to trigger the relay open but do not start the timer, when the trigger signal disappears, digital count down begins, X time after, the relay close; During the delay, again to the signal, digital
count down canceled, stays energized, the signal disappears, restart count down; (equivalent to release the button to start timing, commonly used in power-off delay).Users can set the relay time X; time setting similar to P1-1.
Relay Control switch
R. on : When the relay is closed, the load is de-energized when the load is energized / the relay is disconnected ( Normal mode )
OFF : Completely cut off the load
R. off : When the relay is closed, the load is energized / the relay is disconnected, the load is energized ( Reverse mode )
