UV LED Handheld Lamp Module with High Power LED (UVA 400nm / 365nm )

Industrial Pro. K1 Series

UV LED light with High Power LED module UVA UVB UVC 275nm 365nm 375nm 385nm 405nm For Industrial UV curing system / printing / adhesive curing - K1 - UV.Chingtek.net

----- Key Features -----

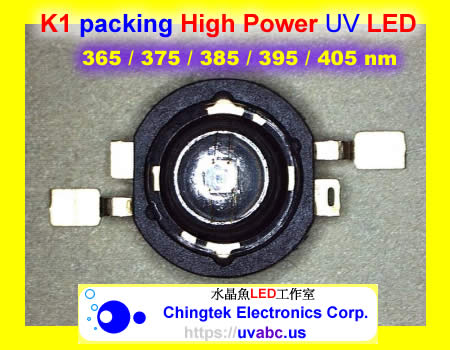

1.) with 1w / 3W K1 packing High Power LED made by listed company in Taiwan, Quality guarantee

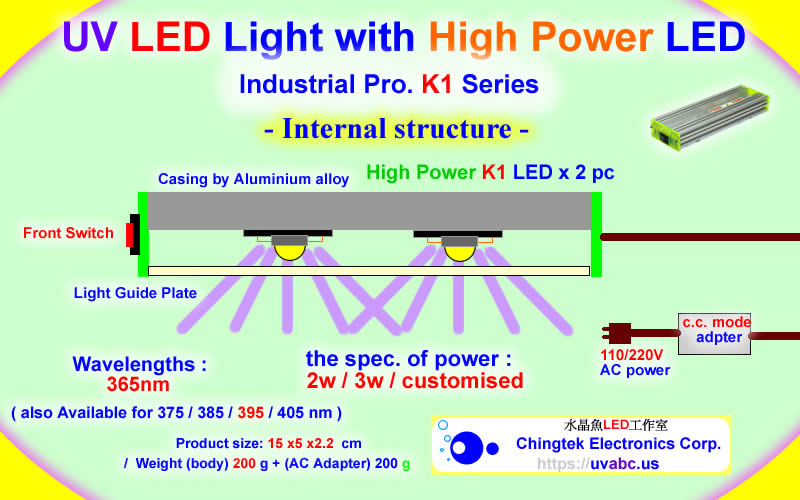

2.) plus 0.3cm optical level Light Guide Plate, More wide lighting angle
  / Casing by Aluminium alloy ,more durable by good thermal dissipation
  / added Front Switch

3.)

Compact size , Portable type ( size¡G15 X 5 x 2.2 cm )

  / ( Weight : (body) 200 g + (AC Adapter) 200 g )

4.) Low temp. / Low power / Energy savings, ( available for 110 / 220 V )
  with MW c.c. mode adapter

5.) 365nm ( 120mW )¡AFor Industrial Diagnostic & Inspection
  / Fluorescence check/ UV adhesive curing / LOCA ( Liquid optical clear adhesive) curing

6.) The Detector (Checker) for COUNTERFEIT FAKE Money Bank Note /
  ID card / Passport / Security (finance) / Casino chip / Casino token / Poker chip / Gambling chip

7.) to be customized products for different length or Watt (power)




UV LED light wiht Hi-Power LED (UVA 400nm / 395nm / 365nm ) Industrial Pro. K1 Series - UV.Chingtek.net



UV LED light wiht Hi-Power LED (UVA 400nm / 395nm / 365nm ) Industrial Pro. K1 Series - UV.Chingtek.net





Hi-Power UV LED light V.S. Traditional Mercury UV Tube
New LED-UV light
Traditional UV Tube
IPCE
85%
20%
Wavelengths

365 +-5nm
395 +-5nm
400 +-5nm

365~395nm + infrared ray
(heat source)
Life time
20,000 Hrs
2,000 Hrs
working temp.

55¢XC
lower temp with small heatsink

above 100¢XC
higher temp with larger heatsink

power
low Voltage / Current
(Energy saving/ safety)
Higher Voltage / Current
range of light

be customised

depend on the size of tube
energy
economic
relatively higher
pollution
Environmental Protection
mercury contamination


UV LED light wiht Hi-Power LED (UVA 400nm / 395nm / 365nm ) Industrial Pro. K1 Series - UV.Chingtek.net


color

Note check

ID card check
Passport check
Fluorescence check
Photosensitive fiber
Photosensitive ink
UV adhesive
UV 400nm
purple
V
X
X
X
normal
normal
X
UV
365nm
white
V
V
V
V
colorful
colorful
V

the Inquiry for UV LED of UV.chingtek.net

( also Available for 375 / 385 / 395 / 405 nm )
Model no : UV-015-02W - 365K
length:15cm
UV LED light wiht Hi-Power LED (UVA 400nm / 395nm / 365nm ) Industrial Pro. K1 Series - UV.Chingtek.net 1. UV LED Light (1w 365nm LED x 2 )
  / added Front Switch + Light Guide Plate
  ( with 170cm of AC power wire,MW c.c. mode adapter - for 110/220V )
2. One year guarantee

Model no : UV-015-03W - 365K
length:15cm
UV LED light wiht Hi-Power LED (UVA 400nm / 395nm / 365nm ) Industrial Pro. K1 Series - UV.Chingtek.net 1. UV LED Light (1w 365nm LED x 3 )
  / added Front Switch + Light Guide Plate
  ( with 170cm of AC power wire,MW c.c. mode adapter - for 110/220V )
2. One year guarantee

Model no : UV-048-10W - 365K
length:48cm
  1. UV LED Light (1w 365nm LED x 10 )
  / added Front Switch + Light Guide Plate
  ( with 170cm of AC power wire,MW c.c. mode adapter - for 110/220V )
2. One year guarantee

customized
Model no : UV-xxx-yyW - 365K
  1. customized UV LED Light (1w / 3W 365nm LED )
  / added Front Switch + Light Guide Plate
  ( the power - yy : 1W to 60W up / the length - xxx : 15cm to 156cm)
  ( with 170cm of AC power wire,MW c.c. mode adapter - for 110/220V )
2. One year guarantee
    ( also Available for 375 / 385 / 395 / 405 nm )
Accessories
CK-UV380 Anti- UV 365nm Safety goggles 1. CK-UV400 Anti- UV 400nm Safety goggles
( for 200nm - 400nm only )


CK-HD001 the Handle for Industrial Series 2. CK-HD001 the Handle for Industrial Pro. Series

CK-ST005 Adjustable Holder for Industrial Series 3. CK-ST005 Adjustable Holder for Industrial Pro. Series

  (can be adjusted from 0 cm ~ 25 cm, easy for examination )
  ( User's Manual )


p.s. If the length of the customized UV Light is more
than 15 cm, you need to order 2 sets of holders to
fixed them on both sides.



CK-ST001 the Holder for Industrial Pro. Series 4. CK-ST001 the Holder for Industrial Pro. Series


the Inquiry for UV LED of UV.chingtek.net

p.s.
1.) Caution !! Do not look directly at the UV light , and please wear safety Goggles.


UV LED light wiht Hi-Power LED (UVA 400nm / 365nm ) - UV.Chingtek.net

CK-ST001 - Anti- UV 365nm Safety goggles - UV LED light wiht Hi-Power LED (UVA 400nm / 365nm ) - UV.Chingtek.net


CK-ST001 the Holder for Industrial K1 / COB Series

CK-ST005 Adjustable Holder for COB Series

P.S. Welcome for requesting customized products
( wavelength 365nm to 400nm / higher power LED)

UV LED light wiht Hi-Power LED (UVA 400nm / 365nm ) - UV.Chingtek.net




UV LED light wiht Hi-Power LED (UVA 400nm / 365nm ) - UV.Chingtek.net


Glowing fibres / ink of Currency / Banknote showing under UV 365nm light.
