High Power UV LED module/lamp

( 100W/200W Spotlight 60D - COB type )

High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net

UVA 365nm - 405nm



         Key Features


  1. Board dimension of 55mm x 20mm, Basic power 100W/200W With fine heat dissipation.

  2. with Quartz glass to focus to 60 degree of angle, for more deep distance.

  3. Environmentally friendly: RoHS compliant, mercury-free.

  4. Easy use for Linear UV light source.

  5. 395nm irradiation intensity 10W/cm2 ~ 16W/cm2

  6. 365nm irradiation intensity 9W/cm2 ~ 10W/cm2


Easy use for Linear UV light source

High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net




How to install the UV LED unit into modules?

You must need:
1.) Air/Water cooling heat sink:
The lower temperature you maintain on the COB board,the more intensity power you can run up to, along with longer life span.
2.) UV LED power driver
It's better with dimming function, but must be constant current supply.


The Easiest installation Powerful High Power Board to Start UV LED Curing !


High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net

Our customer’s project for reference !!


High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net


High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net


         Technology of Overviews


The Multi-chips LED package benefit from innovations in device technology, chip package and thermalmanagement. This suite of technologies give engineers and system designers the freedom to develop solutions both high in power and efficiency.


         - The Technology -

Our technology enables to emit large area photons uniformly over the entire COB UV LED surface. The intense optical power density produced by these multi-chips facilitate designs which replace mercury lamps where arrays of traditional power LEDs cannot.

For UV devices, the side-less structure to let the engineers easy to design the linear UV LED light source and instead of the linear mercury lamps with power density 80W/cm -120W/cm.

         - Packaging Technology -

Thermal management is critical in high power LED applications. The UV LEDs have the lowest thermal resistance of any LED on the market with a thermal resistance from junction to heat sink of 0.3°C/W or 0.35°C/W. This allows the LED to be driven at higher current densities while maintaining a low junction temperature, thereby resulting in brighter solutions and longer lifetimes.

         - Reliability Technology -

Designed from the ground up, the COB Multi-chips LEDs are one of the most reliable light sources in the world today. COB Multi-chips LEDs have passed a rigorous suite of environmental and mechanical stress tests, including mechanical shock, vibration, temperature cycling and humidity, and high current applications. With very low failure rates and median lifetimes that typically exceed 10,000 hours, the COB Multi-chips LEDs are ready for evern the most demanding applications.

         - Environmental Benefits -

Our LEDs help reduce power consumption and the amount of hazardous waste entering the environment. All COB Multi-chips LED products manufactured by us are RoHS compliant and free fo hazardous materials, including lead and mercury.





         The Advantages of COB Multi-chips LEDs


Every LED is fully designed to ensure that it meets the high quality standards expected from our products.


>>> Low Thermal Resistance < 0.16°C/W / High thermal conductivity 401W/(m.K)

       Copper Substrate and LED Chip Direct Bonding on Cu Base


>>> Special Reflecting Surface

       No Ag Plating, Anti-Sulfide, and Low Light Decay.


>>> Ni Coating at the Cu substrate bottom

       Anti-Oxidized and SMT Compatible.



COB Multi-chips LEDs

COB Multi-chips LEDs - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net




      Package Dimensions (mm)


Package Dimensions - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net
1.) LED Array : 12s x3
2.) Typical Voltage: 46V
3.) Operating Current: 700mA x3

Notes: (1) All dimensions are in millimeters. (2) Tolerance is ±0.25mm


Circuit structure diagdram - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net

Package Dimensions - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net
1.) LED Array : 12s x6
2.) Typical Voltage: 46V
3.) Operating Current: 700mA x6

Notes: (1) All dimensions are in millimeters. (2) Tolerance is ±0.25mm






      Electrical/Optical Characteristics (Ta=25°C)


Optical Characteristics (Ta=25°C)

Parameter
Symbol
Wavelength
Conditions
Min.
Typ.
Max.
Units
Irradiance Note[1]
Ee
365-375nm
IF=700mA x3
-
10
-

W/cm2

390-400nm
-
16
-
400-420nm
-
16
-
Note: [1] Irradiance measured by EIT UV Power Puck II Meter, and the distance of test is 5 mm.

Electronic Characteristics (Ta=25°C)

Parameter
Symbol
Conditions
Min.
Typ.
Max.
Units
Forward Voltage
VF
IF=700mA x3
37
46
53

V

Thermal Resistance
JunctionTo Board
RthJ-C1
IF=700mA x3
0.2
°C/W

Absolute Maximum Rating (Ta=25°C)

Parameter
Symbol
Conditions
Units
Power Dissipation
PD
110

W

Forward Current Note[1]
IF
700 x3
mA
Forward Pulse Current
(1/10 Duty Cycle, 400msec Pulse Width)
IFP
1000 x3
mA
LED Junction Temperature
Tj
125
/°C
Operating Temperature Range
Topr
-20℃ To +80℃
Storage Temperature Range
Tstg
-20℃ To +120℃
Soldering Condition Note[2]
Tsol
180℃ For 5 Seconds
Note: [1] .Independent electric power input by 12S(series)3P(parallel), see circuit structure diagram.
[2] When assembly on heatsink, low Temp. profile solder is suggested.

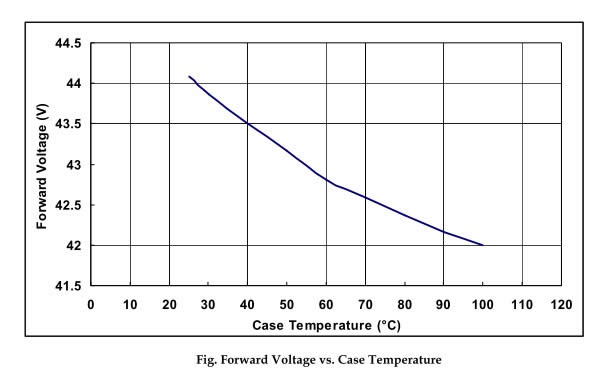

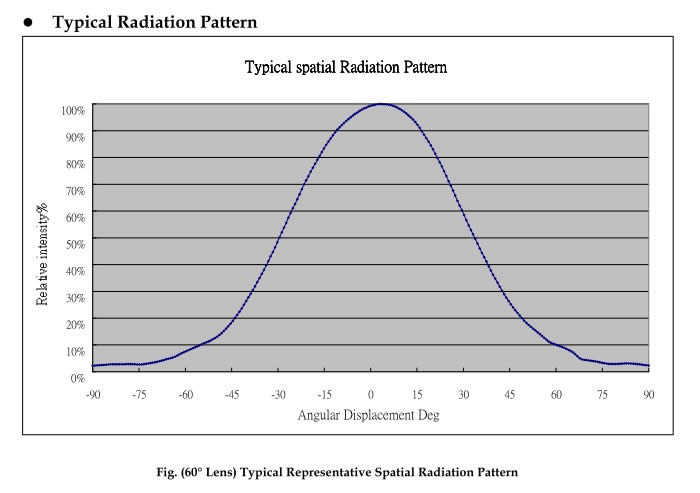

         Optical & Electric Characteristics


.

COB Multi-chips LEDs - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - Chingtek.net

.

COB Multi-chips LEDs - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net

.

COB Multi-chips LEDs - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net

365 - 375nm

COB Multi-chips LEDs - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net

390 - 420nm

COB Multi-chips LEDs - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net

.

COB Multi-chips LEDs - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net

.

COB Multi-chips LEDs - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net

.

COB Multi-chips LEDs - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - COB type - Chingtek.net



         Ordering Information


Color
Order Code
Peak
Wavelength (nm)
Light
Intensity (W/cm2 )@700mA x3
Min
Max
Min
Max
UV
UVA-100-405D60
400
405
16
16
UVA-100-400D60
395
400
16
16
UVA-100-395D60
390
395
16
16
UVA-100-385D60
380
385
10
10
UVA-100-375D60
370
375
10
10
UVA-100-365D60
365
370
10
10


Color
Order Code
Peak
Wavelength (nm)
Light
Intensity (W/cm2 )@700mA x6
Min
Max
Min
Max
UV
UVA-200-405D60
400
405
16
16
UVA-200-400D60
395
400
16
16
UVA-200-395D60
390
395
16
16
UVA-200-385D60
380
385
10
10
UVA-200-375D60
370
375
10
10
UVA-200-365D60
365
370
10
10



  P.S.

  1. Caution !! Do not look directly at the UV light , and please wear safety Goggles.

COB Multi-chips LEDs - High Power ultraviolet UV LED module/lamp 100W/200W ( 365nm 375nm 385nm 395nm 405nm) - Spotlight 60D - Chingtek.net

-----    Click me for Inquiry !!    -----



      Introduction of accessories


CK-UV400 Anti-UV 400nm Safety goggles
