Handheld Surface Inspection LED Lamp

( Industrial Pro. YeGr Series )

Handheld Surface Inspection LED Lamp / Light Source for Sticky dust particles, slight scratch on LCD screen, micro engraving mold, semiconductor, wafer and coating - UV.Chingtek.net


         Key Features


  1. with 3W High Power LED made by listed company in Taiwan, Quality guarantee.

  2. plus 3 mm optical level Light Guide Plate. Added Front Switch. Casing by Aluminium alloy ,more durable by good thermal dissipation. Optional U type handle for better operation.

  3. Dimensions / Weight :
                UV-BOX       (main body) 15 X 5 x 2.2 cm / 200 g
                AC adapter   200 g

  4. Optional for Adjustable Digital Timer - 1 sec. to 999 min. ( to purchase extra control box )

  5. Optional for customized 12V-48V DC power

  6. Low temp. / Low power / Energy savings, ( available for 110 / 220 V ) with MeanWell c.c. mode adapter

  7. Light Source for Sticky dust particles, slight scratch on LCD screen, micro engraving mold, semiconductor, wafer and coating.

  8. Available for Customization for different wavelength (528/570/589nm) or Watt (power).

  Special Notice :

  1. Because most of our customers are using products in clean room environments, the products are not equipped with cooling fans
  2. It is recommended that the indoor temperature be lower than 24 °C during use and the use time should be maintained within 30-60 minutes.
  3. If the operating environment permits, a cooling fan can be installed for the product according to requirements.

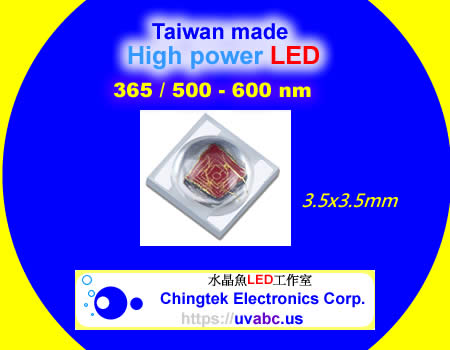

         Technology


Technology - Handheld Surface Inspection LED Lamp / Light Source for Sticky dust particles, slight scratch on LCD screen, micro engraving mold, semiconductor, wafer and coating - UV.Chingtek.net



      Internal Structure


Internal Structure - Handheld Surface Inspection LED Lamp / Light Source for Sticky dust particles, slight scratch on LCD screen, micro engraving mold, semiconductor, wafer and coating - UV.Chingtek.net




      the Mobile Series


Handheld Surface Inspection LED Lamp / mobile Series for Sticky dust particles, slight scratch on LCD screen, micro engraving mold, semiconductor, wafer and coating - UV.Chingtek.net



         Specification


   Available for Customization for different wavelength ( 528 / 570 / 589 nm ) or Watt (power)


Model No.: SD-015-06W-528G

Industrial Pro. YeGr Series - 6W LED

1.Light (3W Green LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Illuminance: 210 lm
3.One year guarantee          Length: 15 cm
-
Model No.: SD-015-12W-528G

Industrial Pro. YeGr Series - 12W LED

1.Light (3W Green LED x 4 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Illuminance: 400 lm
3.One year guarantee          Length: 15 cm
-

Model No.: SD-015-06W-589Y

Industrial Pro. YeGr Series - 6W LED

1.Light (3W Yellow LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Illuminance: 160 lm
3.One year guarantee          Length: 15 cm
-
Model No.: SD-015-12W-589Y

Industrial Pro. YeGr Series - 12W LED

1.Light (3W Yellow LED x 4 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Illuminance: 300 lm
3.One year guarantee          Length: 15 cm
-

Model No.: SD-015-06W-570Y

Industrial Pro. YeGr Series - 6W LED

1.Light (3W Yellow Green LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Illuminance: 320 lm
3.One year guarantee          Length: 15 cm
-
Model No.: SD-015-12W-570Y

Industrial Pro. YeGr Series - 12W LED

1.Light (3W Yellow Green LED x 4 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Illuminance: 600 lm
3.One year guarantee          Length: 15 cm
-

Model No.: SD-030-30W-570Y

Industrial Pro. YeGr Series - 30W LED

1.Light (3W Yellow Green LED x 10 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Illuminance: 600 lm
3.One year guarantee          Length: 30 cm
-
Customization Model No.: SD-xxx-yyW-570Y

Industrial Pro. YeGr Series - 6W - 60W LED

1.Customization ( 3W YeGr LED ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Illuminance: 160 lm up
3.One year guarantee          Length: 15 cm - 93 cm
-


Convertible type   Available for switching LEDs ( A - off - B )

Model No.: SD-015-12W-570YG

Convertible type YeGr Series - 12W LED

1.Light (3W Yellow Green LED x 2 + 3W Green LED x 2 )
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Illuminance: A: 320 lm / B: 210 lm
3.One year guarantee          Length: 15 cm
-
Model No.: SD-015-24W-570YG

Convertible type YeGr Series - 24W LED

1.Light (3W Yellow Green LED x 4 + 3W Green LED x 4 )
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Illuminance: A: 600 lm / B: 400 lm
3.One year guarantee          Length: 15 cm
-

Model No.: SD-015-24W-570Yw

Convertible type YeGr Series - 24W LED

1.Light (3W Yellow Green LED x 4 + 3W White LED x 4 )
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Illuminance: A: 600 lm / B: 800 lm
3.One year guarantee          Length: 15 cm
-
Customization Model No.: SD-xxx-yyW-570YG

Industrial Pro. YeGr Series - 12W - 60W LED

1.Light (3W Yellow Green / Green / White / UV LED )
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Illuminance: A: 600 lm up / B: 400 lm up
3.One year guarantee          Length: 15 cm
-


Mobile Series   Battery type - by 18650 Li-ion battery

Model No.: UV-015-06W-528Gb

Industrial Pro. YeGr mobile Series - 6W LED

1.Light(3W Green LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /DC BOX(using 18650 Li-battery x 2, w/ 100cm of wire)
2.Illuminance: 200 lm
3.One year guarantee          Length: 15 cm
- not included the batteries.
Model No.: UV-015-06W-570Yb

Industrial Pro. YeGr mobile Series - 6W LED

1.Light(3W Yellow Green LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /DC BOX(using 18650 Li-battery x 2, w/ 100cm of wire)
2.Illuminance: 300 lm
3.One year guarantee          Length: 15 cm
- not included the batteries.





UV LED Module - OEM / ODM ( customized ) for different size / length / power are welcome ! www.chingtek.net


      Optional items


Model No.: CK-UV400
Anti-UV Safety goggles
CK-UV400 Anti-UV 400nm Safety goggles Anti-UV 400nm Safety goggles
( for UV 280nm - 400nm only )
-
Model No.: CK-HD001
U type Handle
CK-HD001 the U type Handle for Industrial Pro. the U type Handle for Industrial Pro.

-
Model No.: CK-ST005
Adjustable Holder for Industrial Pro.
( Adjustable range : height for 0 ~ 25 cm )

( User's Manual )

p.s. Available For customized Holder.
-
Model No.: CK-TC005
Adjustable Digital Timer
CK-TC005 Adjustable Digital Timer 1 sec. to 999 min./ size:12.5X8.5x4.5cm

( User's Manual )

p.s. Optional for extra Pedal switch / Toggle switch
-
Model No.: CK-TC005-PS
Pedal switch
( size:8.3 X 8 x 3 cm )
( with control wire : 150 cm )
-
Model No.: CK-TC005-HS
Toggle switch
( size:8.3 X 2 x 2 cm )
( with control wire : 150 cm )
-



  P.S.

  1. Caution !! Do not look directly at the UV ultraviolet light , and please wear safety Goggles.

UV LED ultraviolet light /module wiht High Power LED (UVA 365/385/395/405nm ) - UV.Chingtek.net

>>>    Click me for sending Inquiry !!    <<<



      Introduction of accessories


CK-ST005 Adjustable Holder for Industrial Pro.

> CK-ST005 Adjustable Holder for Industrial Pro.

the U type Handle for Industrial Pro.

the U type Handle for Industrial Pro.

CK-UV400 Anti-UV 400nm Safety goggles

CK-UV400 Anti-UV 400nm Safety goggles

CK-TC005 Adjustable Digital Timer

CK-TC005 Adjustable Digital Timer




      Application example

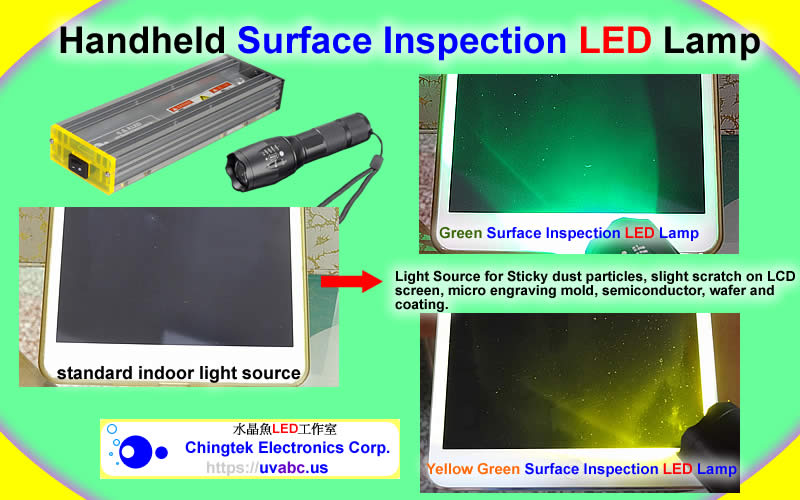

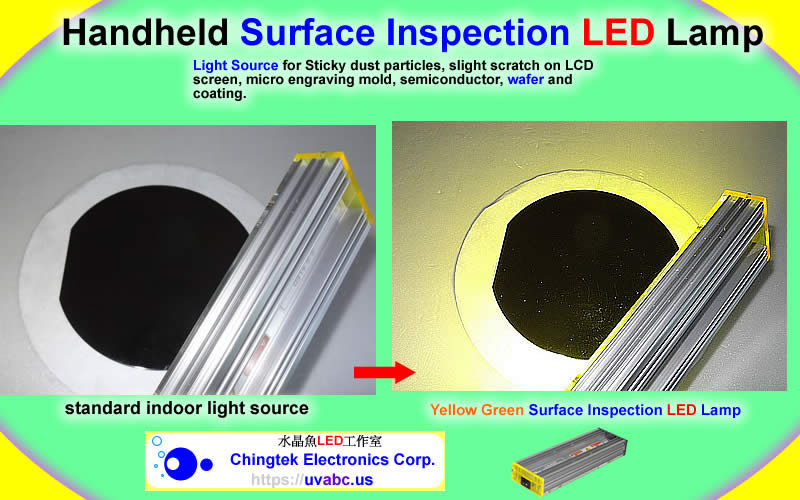

The testing for Sticky dust particles, slight scratch on LCD screen by Handheld Surface Inspection LED Lamp.

The testing for Sticky dust particles, slight scratch on LCD screen by Handheld Surface Inspection LED Lamp. - UV.Chingtek.net
