UV LED ultraviolet light Handheld module/lamp

( UV Flashlight Nichia Series )

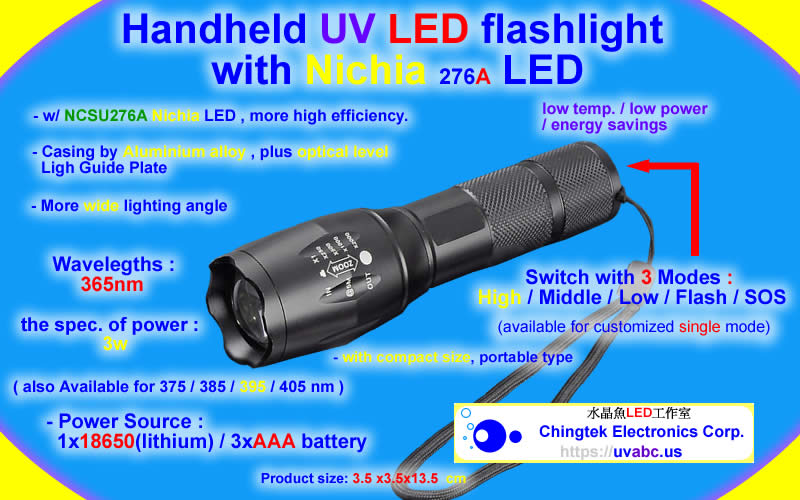

UV LED ultraviolet light Handheld module/lamp  - UV Flashlight Nichia Series - UV Flashlight Series (UVA 365/375/385/395/405nm) For Industrial Diagnostic & Inspection / UV curing / Fluorescence check / adhesive curing - UV.Chingtek.net


         Key Features


  1. with 3W NCSU276A High Power UV-LED ultraviolet made by Nichia (Japan), Quality guarantee.

  2. Plus optical level Light Guide Plate. Casing by Aluminium alloy ,more durable by good thermal dissipation.

  3. Compact size, Portable type.
            Dimensions (main body) 13.1 X 3.5 x 3.5 cm
            Weight         (main body, no battery) 180 g

  4. Low temp. / Low power / Energy savings, Powered by 1x 18650(lithium) or 3x AAA battery.

  5. For Industrial Diagnostic & Inspection / Fluorescence check / UV adhesive curing / LOCA ( Liquid optical clear adhesive) curing.

  6. The Detector / Checker for Conformal Coating of PCBA / COUNTERFEIT FAKE Money Bank Note / ID card / Passport / Security (finance).

  7. Available for Customization for different wavelength (365/375/385/395/405nm).





         Technology


Technology - UV LED ultraviolet light Handheld module/lamp  - UV Flashlight Nichia Series - UV Flashlight Series (UVA 365/375/385/395/405nm - UV.Chingtek.net



      Internal Structure


Internal Structure - UV LED ultraviolet light Handheld module/lamp  - UV Flashlight Nichia Series - UV Flashlight Series (UVA 365/375/385/395/405nm - UV.Chingtek.net




      the Mobile Series


UV LED ultraviolet light module/lamp - Industrial Pro. Nichia mobile Series  (UVA 365/375/385/395/405nm)



         Specification


   Available for Customization for different wavelength (365 / 375 / 385 / 395 / 405nm)


Model No.: UV-013-03W-365N

UV Flashlight Nichia Series - 3W UV LED

1.UV Light (3W 365nm Nichia LED x 1 ) Casing by AL-alloy
   /Light Guide Plate
2.( AAA battery holder, but not included the batteries )
3.One year guarantee          Length: 13.1 cm
-
Model No.: UV-013-03W-395N

UV Flashlight Nichia Series - 3W UV LED

1.UV Light (3W 395nm Nichia LED x 1 ) Casing by AL-alloy
   /Light Guide Plate
2.( AAA battery holder, but not included the batteries )
3.One year guarantee          Length: 13.1 cm
-

Model No.: UV-015-06W-365Kb

Industrial Pro. K1 mobile Series - 6W UV LED

1.UV light(3W 365nm LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /DC BOX(using 18650 Li-battery x 2, w/ 100cm of wire)
2.UV Irradiance: 100 mW/cm2
3.One year guarantee          Length: 15 cm
- not included the batteries.

Model No.: UV-015-06W-365Nb

Industrial Pro. Nichia mobile Series - 6W UV LED

1.UV light(3W 365nm Nichia LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN
   /DC BOX(using 18650 Li-battery x 2, w/ 100cm of wire)
2.UV Irradiance: 200 mW/cm2
3.One year guarantee          Length: 15 cm
- not included the batteries.



      Optional items


Model No.: CK-UV400
Anti-UV Safety goggles
CK-UV400 Anti-UV 400nm Safety goggles Anti-UV 400nm Safety goggles
( for UV ultraviolet 280nm - 400nm only )
-
Model No.: GM-055
UV adhesive
GM-055 UV adhesive Bonding for Glass to Glass / Glass to stainless steel and aluminum.
( must be curing by 365nm UV ultraviolet light. )
-
Model No.: GN-065-11
UV adhesive
GN-065-11 UV adhesive Bonding for PMMA, PS, AS, MS.
( must be curing by 365nm UV ultraviolet light. )
-



  P.S.

  1. Caution !! Do not look directly at the UV ultraviolet light , and please wear safety Goggles.

UV LED ultraviolet light /module wiht High Power LED (UVA 365/385/395/405nm ) - UV.Chingtek.net

>>>    Click me for sending Inquiry !!    <<<



      Introduction of accessories


CK-UV400 Anti-UV 400nm Safety goggles

CK-UV400 Anti-UV 400nm Safety goggles




      Application example


Glowing fibres / ink of Currency / Banknote showing under UV 365nm ultraviolet light.

Glowing fibres / ink of Currency / Banknote showing under UV 365nm ultraviolet light.

The testing for Fluorescence by UV LED ultraviolet light/lamp.

The testing for Fluorescence by UV LED ultraviolet light/lamp.
